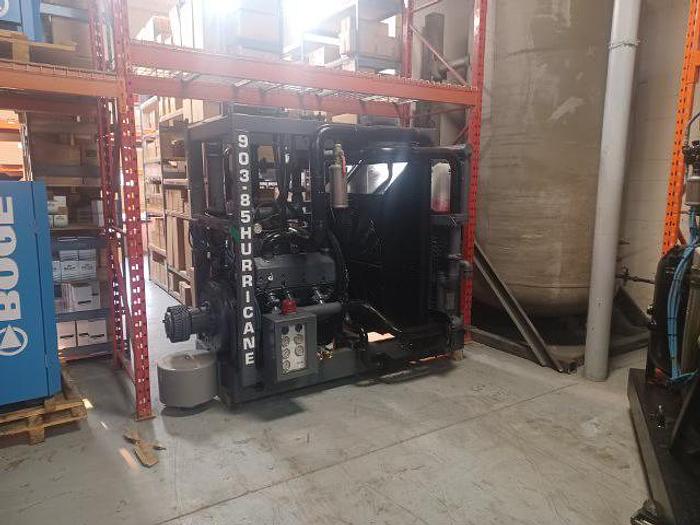

2000 Atlas Copco 903-85-2000 Booster Compressor Hurricane

Atlas Copco Hurricane Booster Compressor (New 2024 Price)

Model: 903-85-2000

RPM: 1800 RPM

# of Stages: 5

Suctrion Pressure: Atmosphere

Stroke: 4 3/4

Year: 2000

Outlet: 1 1/2" ANSI Flange

Belt Driven with after cooler

Dimensions: 95"(L) x 77"(W) x 90"(H)

Weight: 5740 LBS

Max OP Temp: 125°F / 52°C

*Air Cleaner 2 stage

*Full flow air cleaner

Air inlet Air separator (each stage)

Electrical System is 24 volt

Intercoolers and moisture Separator (between eash stage)

Aftercoolers after Final Discharge

Nema 4 control panel with;

Discharge Air Pressure gauage (after each stage and final discharge)

Hour meter

On/Off switch

Shock mounts

Warning beacon light

Fault reset buttons

Compressor Oil Pressure safety switch/guage

Self Contained cooling system

Standard safety shutdown system

Belt driven aftercooler

Skid mounted on steel base

This Atlas Copco Booster Compressor if fully rebuilt from the ground up.

This booster compressor is PTO Driven off the driveshaft of the Truck Chassis (not included)

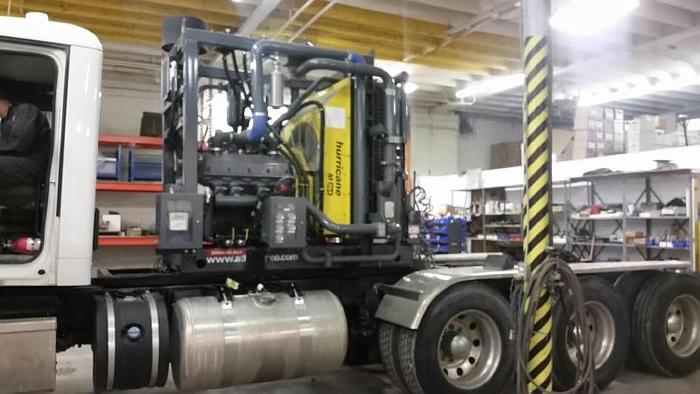

There is a photo of the Booster showing how it was mounted to a truck Chassis.

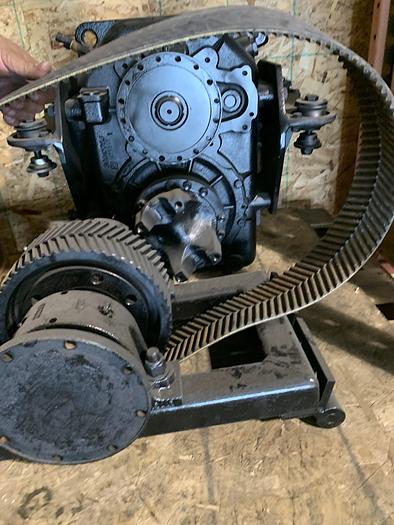

Attached also is a Omsi Gearbox that attaches and drives the booster compressor off the truck chassis drive shaft when the truck is parked and the PTO is turned on (engaged). The price includes this Omsi Gearbox.
